ASUS ProArt B650-Creator Moderkort AM5, AMD B650, ATX, DDR5, 2 x PCIe 4.0 x16 slots, 3 x M.2 slots

Artikelnummer: 90MB1C40-M0EAY0
SKU: i-1223277
Se alla produkter från : HP

Inte i lager
OBS! Lagerstatus gäller endast webblager. Kontakta oss via telefon för lagerstatus I butik

Fråga om den här produkten

4 260 kr

355kr/ mån (12 mån)

Gratis frakt

ASUS ProArt B650-Creator

ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

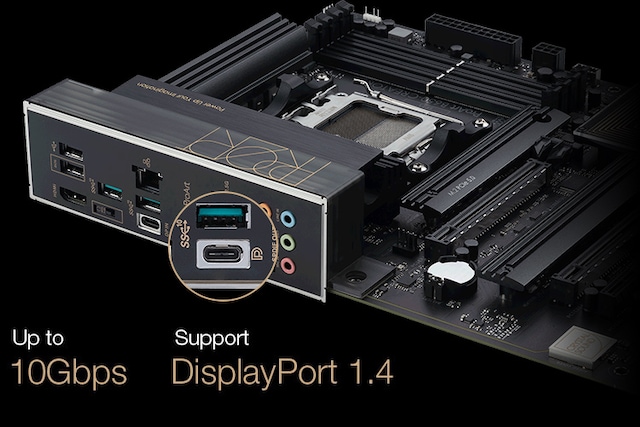

USB-C DisplayPort (DP Alt Mode)

This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.

*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.

USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+

USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.

USB4® Support

ProArt B650-Creator features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

*ASUS add-on card is sold separately.

Multi-card support

The ProArt B650-Creator supports multi-card configurations for expandability and flexibility in various professional workload scenarios such as 3D animation, video editing, audio production and SSD storage capacity upgrades.

Dual Ethernet

2.5 Gb and 1 Gb Ethernet provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.

M.2 Slot (Key E)

ProArt B650-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.

*WiFi/BT modules are sold separately.

PCIe 5.0 M.2 Storage

The ProArt B650-Creator features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

Allmänt
Produktlinje ASUS
Modell ProArt B650-CREATOR
Producentens garanti (månader) 36
EAN 4711081988090
Moderkort
RAM-kortplatser 4 DIMM-kortplatser
Kretstyp AMD B650
RAM-teknik som stöds DDR5 SDRAM
Kompatibla processorer Ryzen
Kompatibla processorkommentarer Stöd för Ryzen 7000 Series
Processor-socket Socket AM5
Formfaktor ATX
RAM som stöds (registrerad eller buffrad) Ej buffrad
Strömkontakter 6-stifts PCI Express-strömkontakt, 24-pin kontakt för huvudström, 4-pin ATX12V-kontakt, 8-pin ATX12V-kontakt
RAM-hastighet som stöds 6400 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 5400 MHz (O.C.), 6200 MHz (O.C.), 5000 MHz, 5200 MHz, 4800 MHz
Stöder Ram Integrity Check Icke ECC, ECC, On-die ECC
Moderkortegenskaper
BIOS-typ AMI
BIOS-egenskaper UEFI BIOS, ASUS EZ Flash 3
Viloläge/väckning Wake on LAN (WOL), Wake on PME
Hårdvaruegenskaper Q-Slot, ASUS Enhanced Memory Profile (AEMP), ASUS Stainless Steel Back I/O, Preboot eXecution Environment (PXE), LANGuard, överspänningsskydd, ASUS SafeDIMM, BIOS FlashBack-knapp, ASUS ProCool, ASUS TurboV EVO, 12+2 Phase Power Design, Detekteringsteknik för ljudjack, ESD Guards, M.2 Q-Latch, ASUS SafeSlot, Q-DIMM, ASUS OptiMem II, Q-LED, CrashFree BIOS 3, M.2 kylfläns, Automatisk enhets-igenkänning, Förmonterat I/O-skydd, ASUS Aura Sync, ASUS EZ DIY, ASUS 5X Protection III, VRM-kylelementskonstruktion, ASUS DIGI+ VRM, ASUS Q-Design, Quick Charge 4+, DIY Friendly Design, ASUS Q-Connector, BIOS FlashBack LED, 60 A strömsteg
Gränssnitt
USB/FireWire-portkonfiguration (aktiv) 2 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 2.0
Lagringsportar 4 x SATA-600 (RAID), 2 x M.2
RAID-egenskaper AMD RAID Xpert2-teknik
USB/FireWire-portkonfiguration (sidhuvud) 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Lagring Serial ATA-600 (RAID), M.2-uttag
USB/FireWire USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
Videoutgång
Typ Grafikadapter (CPU krävs)
Ljudutgång
Typ Ljudkort
Ljud High Definition Audio (8-kanalig)
Standarder som följs HD-ljud
Diverse
Produkttyp Moderkort
Standarder som följs FCC Part 15 Class B, DisplayPort 1.4, JATE, EU REACH, VCCI Class B ITE, EU RoHS, WEEE
Inkluderade tillbehör ACC Express Activation Key Card, 1 st. M.2-gummipaket, Q-Connector, 2 x M.2 skruvpaket
RAM
Egenskaper Minnesarkitektur med dubbel kanal, AMD EXPO-teknik
Nätverk
Datalänkprotokoll 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet
Nätverk Gigabit Ethernet, 2.5 Gigabit Ethernet
Expansionsuttag
Expansionskortplatser 1 x CPU, 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M-plats), 1 x PCIe 4.0 x16 (x4-läge), 1 x M.2 socket (2242/2260/2280 M.2 Key M-plats), 4 x DIMM 288-stift, 1 x PCIe 4.0 x1, 1 x M.2 socket (Key E), 2 x PCIe 4.0 x16 (dubbelt x8-läge, enkelt kort: x16-läge)
Lagringsgränssnitt
Lagringsgränssnitt PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10
Tillhandahållet gränssnitt
Gränssnitt 1 x ljudutgång - mini-jack, 1 x ljudingång - mini-jack, 1 x SPDIF-utgång, 1 x LAN (Gigabit Ethernet), 1 x LAN (2.5Gigabit Ethernet), 1 x mikrofon - mini-jack, 1 x ljudutgång (center/subwoofer) - mini-jack, 2 x USB 2.0, 3 x USB 3.2 Gen 2, 1 x USB-C Gen2/DisplayPort, 1 x USB-C 3.2 Gen 2, 1 x HDMI, 1 x ljudutgång (bakre) - mini-jack, 1 x DisplayPort-ingång
Interna gränssnitt
Interna gränssnitt 1 x ljud - header, 1 x seriell - header, 4 x USB 2.0 - header, 1 x USB-C 3.2 Gen 2x2 - header, 2 x USB 3.2 Gen 1 - header, 1 x Thunderbolt - header
Kabeldetaljer
Medföljande kablar 1 x DisplayPort-kabel, 2 x Seriell ATA-kabel
Programvara
Programvara inkluderad PC Cleaner, Norton AntiVirus (Trial), ASUS ProArt Creator Hub, WinRAR, ASUS Fan Xpert 4, ASUS AURA Creator, ASUS AI Suite III, ASUS CPU-Z, Armoury Crate, CreationFirst, ASUS Control Center Express
